Electrolycra Strip
Product Code : EL-MTP-11648
Quick Answer: The Electrolycra Strip is a stretchy conductive fabric, supplied as a 1 x 100 x 1450 mm strip, whose electrical resistance changes as it is stretched.
Last updated: October 2026
Key Features
- Conductive stretch fabric strip, 1 x 100 x 1450 mm
- Resistance of 5 Ω per 100 mm when unstretched
- 20 Ω when stretched to 150 mm in one axis; 2.5 Ω when stretched at 90° to this
- Can be cut into narrow strips for flexible wires, switches and sensors
- A thin strip warms when current passes through it
- Connecting leads not included
Technical Specifications
| Specification | Value |
|---|---|
| Strip size | 1 x 100 x 1450 mm |
| Unstretched resistance | 5 Ω per 100 mm |
| Stretched resistance | 20 Ω at 150 mm in one axis; 2.5 Ω at 90° to this |
| Activation method | Electricity |
| Leads | Not included |
About This Product

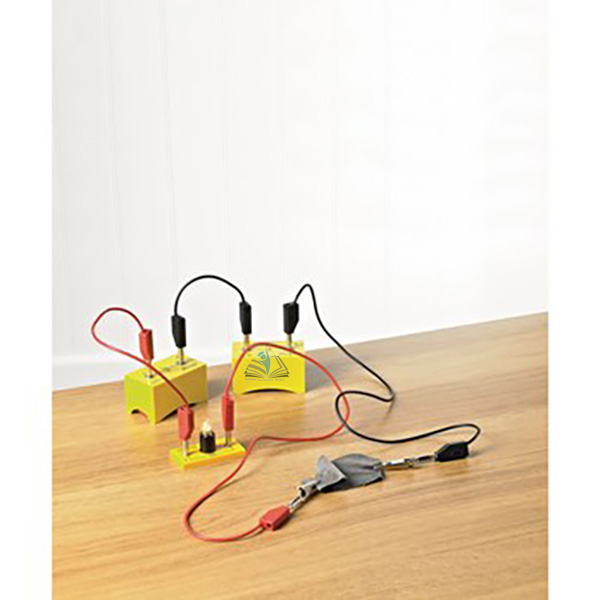

Students connect a strip into a simple low-voltage circuit, measure its resistance and then stretch it gradually to watch the reading change, before trying a different stretching direction. As a soft, compliant material, it can replace metal and foil in classroom switches and sensors. The Electrolycra Strip is available for supply within India and for export to Bhutan, Guinea, Qatar, Brunei and Malaysia.
Frequently Asked Questions
Q1. How does stretching affect resistance?
Pulling the strip increases its resistance, from 5 Ω per 100 mm unstretched to 20 Ω when stretched to 150 mm in one axis. Stretched at 90° to this, it reads 2.5 Ω.
Related: Materials & their Properties, Ferrofluid, Chameleon Nano Flakes.
For a quotation on the Electrolycra Strip, contact School Equipments India.
