Apparatus to Show Force on a Conductor in a Magnetic Field
Product Code : EL-EE-10892
Quick Answer: The Apparatus to Show Force on a Conductor in a Magnetic Field uses a brass axle rolling on brass rails between the poles of a U-shaped magnet to show the force on a conductor.
Last updated: October 2026
Key Features
U-shaped magnet with a pair of brass rails
Brass axle with plastic discs, free to roll along the rails
Axle completes the electrical contact between the rails
4 mm socket terminals on the rails
Dimensions 175 mm x 60 mm x 58 mm
Needs an external power supply
Technical Specifications
Specification
Value
Magnet
U-shaped
Rails
Pair of brass rails with 4 mm socket terminals
Axle
Brass, with plastic discs
Dimensions
175 mm x 60 mm x 58 mm
Power
Requires external power supply
About This Product

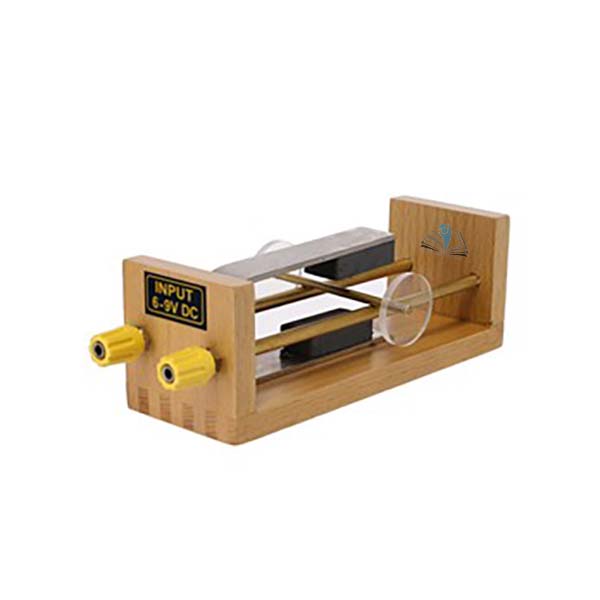

The axle is placed on the rails between the poles of the magnet, where it completes the circuit between them. Once a power supply unit is connected, the axle is repelled and rolls along the rails away from the centre of the magnetic field. Export supply of the Apparatus to Show Force on a Conductor in a Magnetic Field can be arranged to laboratories and schools in Chad, Syria, Barbados, Belarus and South Africa.
Frequently Asked Questions
Q1. What happens when the power supply is connected? With the axle on the rails between the poles of the magnet, it is repelled and rolls along the rails away from the centre of the magnetic field.
Q2. Is a power supply included? No. The apparatus requires an external power supply.
