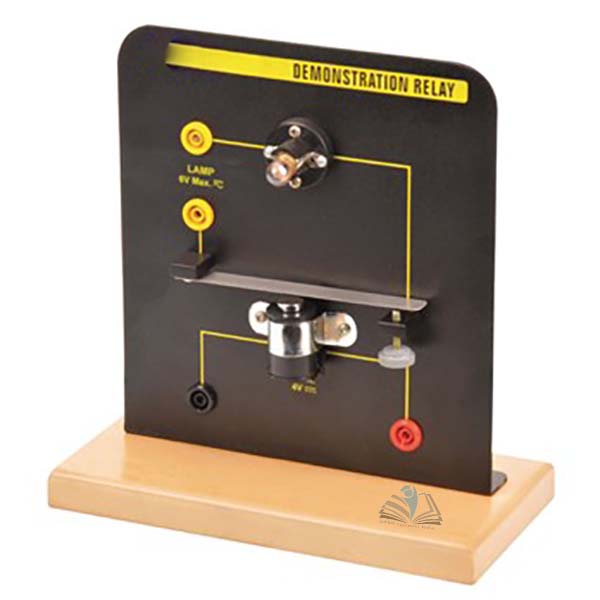

Demonstration Relay

Product Code : EL-EE-10905

Quick Answer: The Demonstration Relay is a unit for investigating how a relay works, with a coil input of 4-6 V d.c. and a bulb input of 6 V a.c. or d.c.

Last updated: October 2026

Key Features

Allows the study of how a relay functions
Coil circuit clearly separate from the switched circuit
Coil input 4-6 V d.c.
Bulb input 6 V a.c. / d.c.

Technical Specifications

Specification	Value
Component	Demonstration relay
Coil input	4-6 V d.c.
Bulb input	6 V a.c. / d.c.

About This Product

With this unit, it is easy to see that the circuit powering the relay coil is completely separate from the circuit the relay switches on. That separation is one of the reasons relays are used where a safe low voltage circuit controls a high voltage circuit. The Demonstration Relay is available for supply within India and for export to Portugal, Malta, Bolivia, Afghanistan, Albania and Central African Republic.

Frequently Asked Questions

Q1. Why are relays used to control high voltage circuits?
The circuit powering the coil is completely separate from the switched circuit, so a safe low voltage circuit can be used to control a high voltage circuit.

For a quotation on the Demonstration Relay, contact School Equipments India.
