100FX Monocular LED Microscope 400x
Product Code : EL-MA-10549

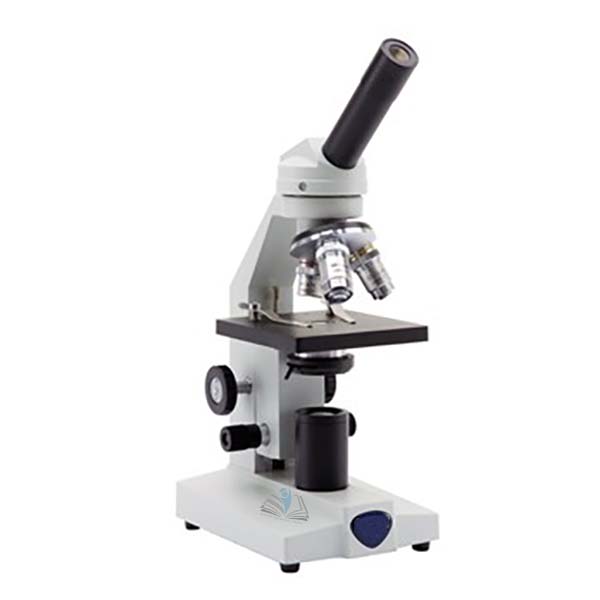

Quick Answer: The 100FX Monocular LED Microscope 400x is a robust monocular microscope with a 1W LED illuminator, rechargeable batteries and 4x, 10x and 40x achromatic objectives giving up to 400x magnification.
Last updated: October 2026
Key Features
- Total magnification 40x, 100x and 400x
- Anti-fungal treated achromatic objectives 4x, 10x and 40x
- Removable WF 10x/18 mm eyepiece accepts an eyepiece camera or micrometer
- 1W LED illuminator with rechargeable batteries
- Fixed 120 x 110 mm stage with sample clips
- Triple nosepiece rotating on ball bearings
Technical Specifications
| Specification | Value |
|---|---|
| Total magnification | 40x, 100x, 400x |
| Eyepiece | Wide Field 10x/18 mm |
| Objectives | Achromatic 4x, 10x, 40x, anti-fungal treated, 160 mm tube length, 0.17 mm cover glass |
| Head | Monocular, 360° rotating, 45° inclined |
| Nosepiece | Triple, rotating on ball bearings |
| Stage | Fixed, 120 x 110 mm, sample clips |
| Focusing | Separate coarse and fine |
| Illumination | 1W LED |
| Observation mode | Bright field |
| Supplied with | Power supply, instruction manual, dust cover |
About This Product
This is a sturdy school microscope with interchangeable eyepieces, suited to most biological applications. Taking out the 18 mm eyepiece lets an eyepiece camera or eyepiece micrometer be fitted, so images can be captured or specimens measured. The LED illuminator runs from rechargeable batteries, and the fixed stage holds slides with sample clips. Export supply of the 100FX Monocular LED Microscope 400x can be arranged to laboratories and schools in France, Yemen, Mali, Fiji, Djibouti and South Sudan.
Frequently Asked Questions
Q1. Can a camera be fitted to the microscope?
Yes. The 18 mm eyepiece can be removed to allow an eyepiece camera or eyepiece micrometer to be inserted.
Related: Microscopes & Accessories, Monocular LED Microscope 400x, Microscope Dust Cover, Magnifier - 32mm 5X.
For a quotation on the 100FX Monocular LED Microscope 400x, contact School Equipments India.
