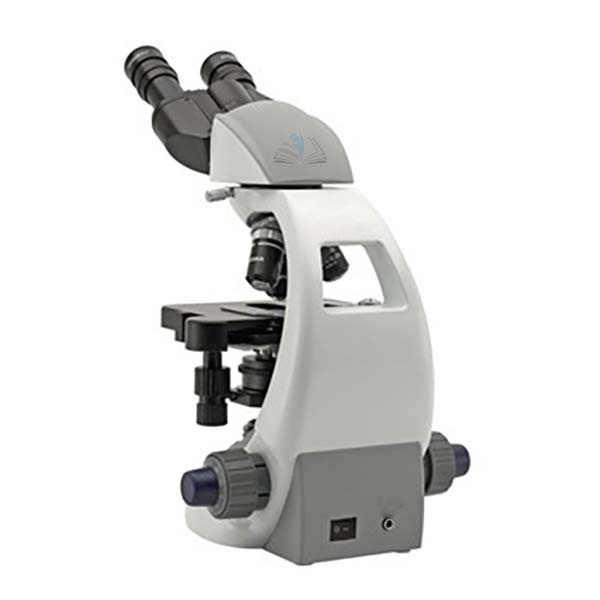

Binocular LED Microscope
Product Code : EL-MA-10583
Quick Answer: The Binocular LED Microscope is a 1000x microscope for routine transmitted-light work, with a die-cast frame, WF10X/20mm eyepieces, four objectives and adjustable 3.6W LED illumination.
Last updated: October 2026
Key Features
- Magnification up to 1000x with 4X, 10X, 40X and 100X objectives
- Stable die-cast frame with an ergonomic design
- Removable WF10X/20mm eyepiece takes an eyepiece micrometer or camera
- Graduated coaxial coarse and fine focusing
- 3.6W LED lighting with adjustable intensity
- Comes with power supply, dust cover and instructions
Technical Specifications
| Specification | Value |
|---|---|
| Microscope type | Binocular |
| Eyepiece | WF10X/20mm |
| Objectives | 4X, 10X, 40X, 100X |
| Magnification | Up to 1000x |
| Focus | Coaxial coarse and fine, graduated |
| Illumination | 3.6W LED, adjustable intensity |
| Voltage | 240V |
| Dimensions | (H) 370 mm x (W) 235 mm x (D) 290 mm |
| Weight | 6.5 kg |
About This Product
This binocular microscope is built for routine observation of specimens by transmitted light. When measurements or images are needed, one eyepiece can be taken out and replaced with an eyepiece micrometer or an eyepiece camera. A stage micrometer, maintenance kit and spare power lead are among the accessories offered separately.
Frequently Asked Questions
Q1. Can a camera be fitted to the Binocular LED Microscope?
Yes. The WF10X/20mm eyepiece can be removed so that an eyepiece camera or an eyepiece micrometer can be inserted.
Related: Microscopes & Accessories, Monocular LED Microscope 400x, 100FX Monocular LED Microscope 400x.
For a quotation on the Binocular LED Microscope, contact School Equipments India.
